A fuse is a simple but important electrical safety device designed to protect circuits and electrical equipment from excessive current. If too much current flows through a circuit, the fuse is designed to break the circuit and stop the flow of electricity. Fuses are commonly found in household plugs, appliances, vehicles, electronic devices, and electrical distribution systems. In the UK, many domestic plugs use a replaceable cartridge fuse to provide additional protection for the appliance and its power cord.
What Is a Fuse and Its Function?
A fuse is an electrical protection device designed to protect a circuit from excessive current. It contains a thin metal element and is installed in the electrical path so that current normally passes through it. The main function of a fuse is to protect electrical wiring and equipment from overcurrent, which can cause overheating, equipment damage, or potentially an electrical fire. If the current becomes too high, the fuse interrupts the circuit and disconnects the affected equipment or wiring from the electrical supply.
A fuse does not protect against every type of electrical fault. For example, it does not normally detect earth leakage in the same way as a residual current device (RCD).
How Does a Fuse Work?
A fuse works through the heating effect of electric current. Under normal operating conditions, current flows through the fuse element without generating enough heat to melt it. When excessive current flows, however, the fuse element heats up. If the current remains above the fuse's operating level for long enough, the element melts, or blows, creating an open circuit and stopping current from flowing through that path.
For example, if an appliance normally draws 3 A but a fault causes a much higher current to flow, the fuse may operate and disconnect the appliance from the supply. A fuse does not necessarily operate the instant current exceeds its rated value. Operating time depends on the magnitude and duration of the overcurrent as well as the fuse's design and characteristics. Fast-acting fuses respond relatively quickly, while time-delay or slow-blow fuses can tolerate brief increases in current, such as the inrush current that may occur when some motors or transformers start.
Types of Electrical Fuses
Electrical fuses come in different designs and ratings depending on their application. They can be classified in several ways, including by their physical design, construction, and how quickly they respond to overcurrent. The correct type depends not only on its design but also on its electrical ratings and operating characteristics.
Cartridge Fuses
Cartridge fuses are widely used in electrical and electronic equipment. They contain a fuse element inside a protective body and are available in different sizes and current ratings.
Plug Fuses
Plug fuses are particularly important in the UK. BS 1363 plugs generally use a cartridge fuse, commonly rated at 3 A or 13 A depending on the appliance and its flexible cable.
Blade Fuses
Blade fuses are commonly used in vehicles and other low-voltage DC applications. Their plastic bodies and flat metal terminals make them easy to install and replace.
Glass and Ceramic Fuses
Glass and ceramic describe the construction of many cartridge fuses rather than completely separate operating types. These fuses are commonly found in electronic equipment and power supplies. The body material alone does not determine a fuse's electrical characteristics, so a replacement fuse should match the specifications required by the equipment.
High Rupturing Capacity (HRC) Fuses
High rupturing capacity (HRC), also known as high breaking capacity (HBC), fuses are designed to safely interrupt high fault currents. They are more commonly used in electrical distribution and industrial applications than in everyday plug-in appliances.
Fast-Acting and Time-Delay Fuses
Fuses can also be classified by how quickly they respond to overcurrent. Fast-acting fuses respond relatively quickly to excessive current, while time-delay or slow-blow fuses are designed to tolerate brief current surges, such as the inrush current that may occur when some motors or transformers start.
The correct fuse type depends on the circuit's voltage, current, application, physical dimensions, and required operating characteristics. Always use a replacement fuse that matches the specifications required by the equipment rather than choosing one based on appearance alone.
Why Do UK Plugs Have Fuses?
UK plugs use fuses as part of the protection provided by the BS 1363 plug and socket system. The fuse is connected in the live conductor and is intended to protect the flexible cable supplying the appliance. If an overload or fault causes excessive current to flow, the fuse operates and disconnects the supply, helping prevent the cable from overheating.
This is particularly important because a UK ring final circuit may be protected by a 32 A circuit breaker, while an appliance's flexible cable may have a much lower current-carrying capacity. The plug fuse therefore provides overcurrent protection appropriate to the appliance cable rather than relying only on the circuit protection in the consumer unit.
Common Causes of Blown Fuses
A fuse can blow when a circuit experiences excessive current. One common cause is an overload, which occurs when an appliance or group of appliances draws more current than the fuse or circuit is designed to handle. For example, connecting several high-power appliances to the same extension lead can cause an overload.
A short circuit can also cause a fuse to blow. This happens when an unintended low-resistance path allows a large current to flow. Damaged insulation or direct contact between conductors can create a short circuit.
Other common causes include faulty appliances, damaged cables or plugs, loose electrical connections, and internal component failures. For example, a damaged motor, heating element, transformer, or power-supply component can cause excessive current and operate the fuse.
Some appliances also draw a temporary inrush current when switched on. Motors and transformers, for example, can briefly draw more current during startup. Depending on the fuse characteristics, a sufficiently high or prolonged inrush current may cause the fuse to operate.
An incorrect fuse rating can also cause problems. A fuse rated too low for the appliance may operate during normal use or startup. However, fitting a higher-rated fuse simply to stop it from blowing is not a safe solution.
If a replacement fuse blows again shortly after installation, do not simply keep replacing it. Repeated fuse failures may indicate an underlying electrical fault that should be investigated before the appliance is used again.
How to Tell If a Fuse Has Blown
If an appliance stops working, a blown fuse is one possible cause, but loss of power alone does not confirm that the fuse has failed. Some fuses make it possible to see whether the fuse element has melted. For example, a glass fuse may show a broken internal wire or visible discoloration after operating.
However, visual inspection is not always reliable. Before checking or removing the fuse, unplug the appliance from the socket. A fuse can then be checked using a suitable continuity tester or a multimeter set to the appropriate continuity or resistance function. Once the power is disconnected, a continuity test can determine whether the fuse has a complete electrical path. A good fuse typically shows continuity or low resistance, while a blown fuse shows an open circuit.
If the fuse tests correctly but the appliance still does not work, the fault may be elsewhere in the plug, cable, socket, or appliance.
How to Choose the Right Fuse Rating in the UK
Choosing the right fuse rating for a UK plug depends mainly on the appliance's power requirements. Always check the appliance label or manufacturer's instructions first, as the specified fuse rating should take priority over a general calculation.
Appliances rated up to about 700 W typically use a 3 A fuse, while appliances rated between about 700 W and 3,000 W typically use a 13 A fuse. Some older appliances may use a 5 A fuse, so check the manufacturer's guidance if you are unsure.
It is also important to distinguish between the rating of the plug and the fuse inside it. A standard 13 A UK plug does not mean that every appliance should use a 13 A fuse. A lower-power appliance may still require a 3 A fuse inside a standard UK plug.
You can estimate the current drawn by an appliance using:
Current (A) = Power (W) ÷ Voltage (V)
For example, a 2,200 W kettle operating at 230 V draws approximately:
2,200 W ÷ 230 V ≈ 9.6 A
This helps explain why a high-power appliance such as a kettle normally uses a 13 A fuse. However, the calculation should be used only as a guide and should not override the fuse rating specified by the appliance manufacturer.

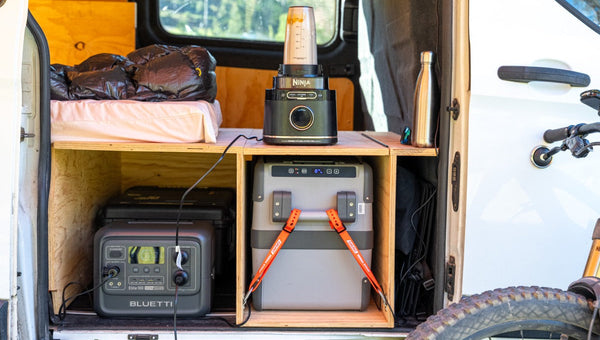

Ever wondered how to power your kettle in the wilderness? The Elite 100 V2 is your perfect outdoor companion. With a 1,024Wh capacity and 1,800W output, this portable power station can keep your essential appliances powered wherever your adventure takes you. Pair it with a solar panel, and you can enjoy more freedom and convenience while camping and exploring the outdoors.
When replacing a fuse, use the same appropriate rating specified for the appliance rather than fitting a higher-rated fuse simply because the original keeps blowing. If the correct fuse repeatedly blows, stop using the appliance and investigate the underlying fault.
How to Replace a Fuse Safely
Replacing a fuse in a UK plug is relatively straightforward, but electrical safety should always come first. Switch off and unplug the equipment before replacing the fuse. Do not attempt to replace a fuse while the plug is connected to the power supply.
Once the plug is safely disconnected, access the fuse according to the plug manufacturer's design. Remove the blown fuse and replace it with a fuse of the same type and appropriate rating specified for the appliance.
After installing the replacement, make sure the fuse and fuse carrier are correctly positioned and that the plug is properly assembled before reconnecting the equipment.
If the replacement fuse blows immediately or repeatedly, stop using the appliance and investigate the underlying problem rather than repeatedly installing new fuses. If you are unsure about the cause of the fault, consult a qualified electrician or the appliance manufacturer.
Conclusion
A fuse is a simple but important safety device that protects electrical wiring and equipment from excessive current. When an overload or fault causes too much current to flow, the fuse element melts and breaks the circuit. In a UK plug, the fuse helps protect the appliance's flexible cable and should be replaced with a BS 1362 fuse of the appropriate rating.
Using the correct fuse rating is essential for maintaining this protection. If the correct fuse repeatedly blows, stop using the appliance and investigate the underlying fault rather than continuing to replace the fuse.
FAQs
Fuse vs MCB: What's the Difference in the UK?
Fuses and MCBs (Miniature Circuit Breakers) both provide protection against overloads and short circuits, but they operate differently. A fuse contains an element that melts when excessive current flows and must be replaced after it operates, while an MCB trips and can usually be reset once the fault has been addressed. Modern UK consumer units commonly use circuit breakers such as MCBs or RCBOs, while older consumer units may still use traditional fuses.
Is a Fuse AC or DC?
A fuse can be designed for AC, DC, or specific applications involving either type of current. The important point is that a fuse must have a voltage and current rating appropriate for the circuit in which it is being used. AC and DC behave differently when an electrical arc forms as a fuse operates, so a fuse designed for one application may not necessarily be suitable for another. Always check the fuse's markings and the manufacturer's specifications before using it.
Will a Plug Still Work Without a Fuse?
No. A standard UK fused plug will not normally power the appliance if the fuse is missing. Never bypass the fuse or replace it with an inappropriate or higher-rated fuse. If the correct replacement fuse blows again, or the plug shows signs of overheating or damage, stop using the appliance and seek professional advice.
What Happens If a Fuse Blows?
When a fuse blows, its internal element melts and opens the circuit, stopping current from flowing through the protected path. As a result, the appliance or circuit protected by that fuse may stop working. A blown fuse cannot normally be reset and must be replaced with the correct type and rating after the cause of the fault has been addressed.
Can a Blown Fuse Cause a Fire?
A fuse that operates correctly is designed to reduce the risk of overheating and fire by interrupting excessive current. However, the electrical fault that caused the fuse to blow may still be hazardous. Using an incorrect higher-rated fuse, bypassing the fuse, or continuing to use damaged wiring or equipment can allow overheating and increase the risk of fire. If the correct fuse repeatedly blows, stop using the appliance until the cause has been identified.
How Long Does a Fuse Last?
A fuse does not have a fixed lifespan. If it is correctly rated and operates within its design limits, it can remain functional for many years without routine replacement. Some manufacturers indicate a typical service life of 20–30 years under suitable operating conditions, although actual service life depends on the fuse type and operating environment.
Where Are Fuses Used?
Fuses are used to protect wiring and equipment from excessive current in UK plugs, household appliances, electronic equipment, vehicles, power supplies, and electrical distribution systems. Different applications require different fuse types and ratings. For example, a standard 13 A UK plug may use a lower-rated fuse, such as 3 A, depending on the appliance and its flexible cable.
